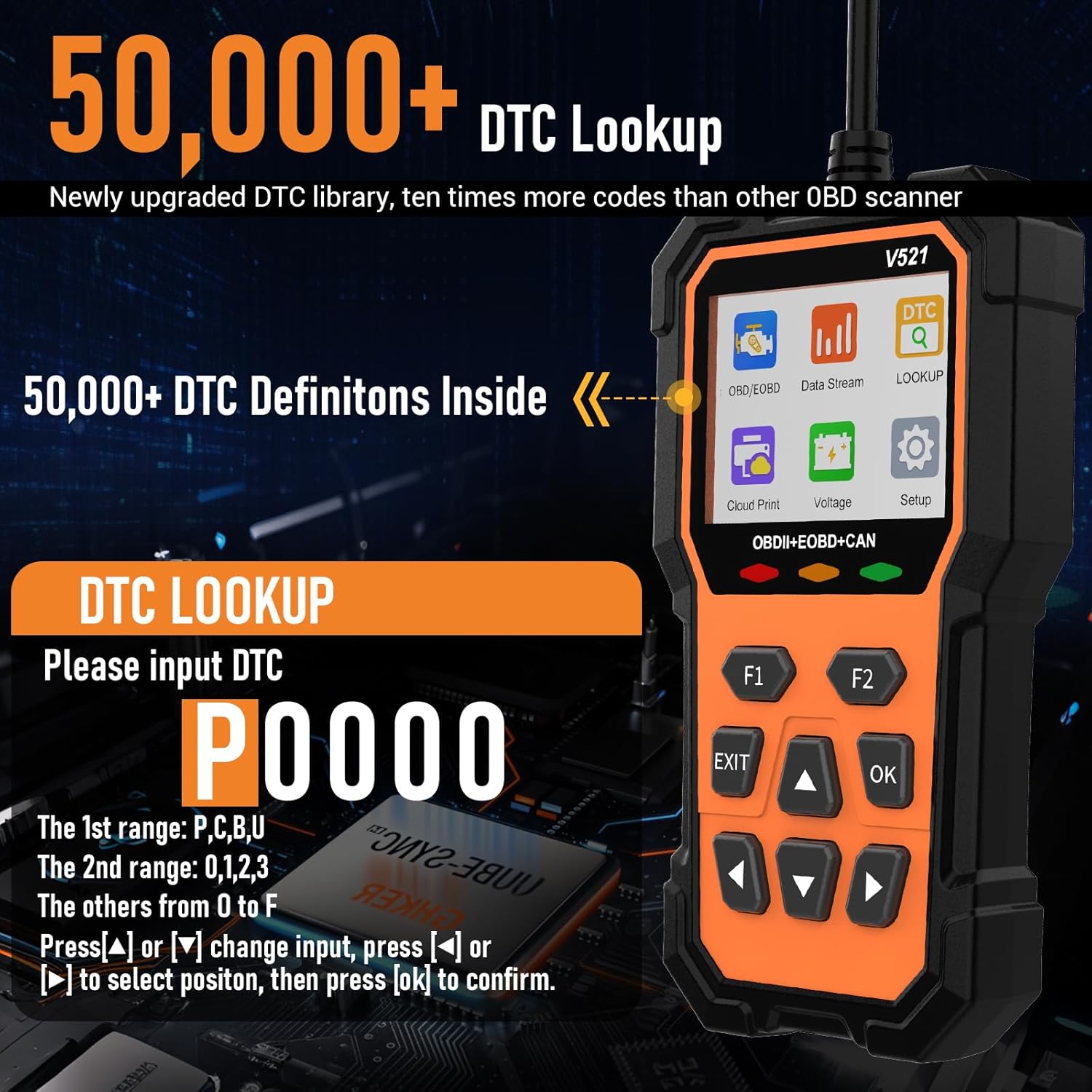

DTC Look-up Function in OBD2 Diagnostic Tool

Now most OBD2 Code Scanner built-in a DTC Look-up Function, we can check the auto fault codes there and find the car’s problem and resolve it via its notices.

The DTC Look-up (Diagnostic Trouble Code Look-up) is a core feature of OBD2 (On-Board Diagnostics II) tools that translates standardized fault codes into human-readable descriptions.

When a vehicle’s onboard computer (ECU) detects an issue within monitored systems (e.g., engine, emissions, transmission), it logs a DTC (e.g., P0171, C0300).

The DTC Look-up function deciphers these alphanumeric codes into specific fault explanations, such as “System Too Lean (Bank 1)” or “ABS Pump Motor Circuit Malfunction.”

Key Use Cases

1. Check Engine Light (CEL) Diagnosis:
   • When the CEL illuminates, an OBD2 scanner retrieves DTCs. The Look-up function helps identify the root cause (e.g., faulty sensor, emission issue).
2. Pre-Purchase Vehicle Inspection:
   • Buyers/sellers use DTC Look-up to check for hidden issues (e.g., unresolved emissions faults, transmission problems).
3. Post-Repair Verification:
   • After fixing a problem, technicians clear codes and use DTC Look-up to confirm the issue is resolved.
4. Periodic Maintenance:
   • Proactive monitoring of minor issues (e.g., pending codes) before they escalate.

Role for Different Users

1. For Vehicle Owners:

• Basic Awareness: Understands the severity of issues (e.g., “Is it safe to drive?”).
• Cost Avoidance: Avoids unnecessary repairs by identifying minor faults (e.g., loose gas cap triggering an evaporative emissions code).
• DIY Troubleshooting: Guides simple fixes (e.g., replacing an oxygen sensor indicated by P0133).

2. For Professional Technicians:

• Diagnostic Starting Point: Prioritizes areas to inspect (e.g., a P0300 code directs focus to ignition or fuel systems).
• Efficiency: Reduces guesswork by narrowing down potential causes (e.g., P0420 indicates catalytic converter efficiency loss).
• Advanced Analysis: Combines DTCs with live data (e.g., fuel trim, sensor readings) to pinpoint failures.

Code Structure & Insights

• DTC Format: A 5-character code (e.g., P0XXX):
  • 1st Character: System (P = Powertrain, B = Body, C = Chassis).
  • 2nd Character: Code type (0 = generic, 1 = manufacturer-specific).
  • Last 3 Digits: Specific fault (e.g., P0301 = Cylinder 1 misfire).
• Critical Data:
  • Freeze Frame Data: Snapshots of vehicle conditions (RPM, speed, temperature) when the fault occurred.
  • Pending vs. Confirmed Codes: Differentiates intermittent vs. persistent issues.

Impact

• Car Owners: Empowerment through transparency, reducing reliance on ambiguous mechanic reports.
• Professional Technicians: Faster, data-driven repairs, improving service quality and customer trust.

By bridging technical data with actionable insights, the DTC Look-up function is indispensable for both casual users and professionals in maintaining vehicle health and compliance with emission standards.
